Product Name：

BS 5163 PN10/PN16

Product details：

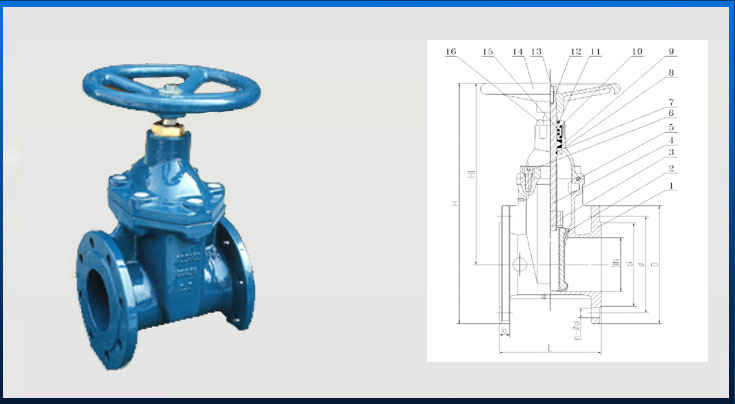

BS 5163 PN10/PN16 Iron Body Flanged Joint Ends Non-rising Resilient Wedge Gate Valves

Bolted Bonnet · Non-Rising Stem · Resilient Wedge · Flanged Ends
CONFORMS TO BS5163

PRECAUTION: Subsequent to testing a piping system, gate valve should be in an open position to allow complete drainage.

	PART	SPECIFICATION
1.	Valve Body	Ductile Iron QT450-10
2.	Resilient Wedge	Ductile Iron QT450-10/EPDM
3.	Wedge Nut	Bronze ZQSn5-5-5
4.	Stem	Stainless Steel 1Cr13
5.	Bonnet Gasket	EPDM
6.	Bonnet Screw	Alloy Steel ASTM 45#
7.	Bonnet	Ductile Iron QT450-10
8.	Stem Primary O-Ring	EPDM
9.	Stem Thrust Washer	Nylon 1010
10.	Gland Seal O-Ring	EPDM
11.	Stem Ring Wiper	EPDM
12.	Bolt	Carbon Steel Zinc Plated
13	Square Operating Nut	Cast Iron HT250
13A	Handwheel (Optional)	Ductile Iron QT450-10
14.	Stem Primary O-Ring	EPDM
15.	Stem Seal Bushing	Brass H62

DN		PN			L		n-φd	D		φ			d	b		t	H	H1
50		10			178		4-φ19	165		125			98	19		3	410	253
		16
65		10			190		4-φ19	185		145			118	19		3	451	284
		16
80		10			203		8-φ19	200		160			133	19		3	498	320
		16
100		10			229		8-φ19	220		180			153	19		3	531	343
		16
125		10			254		8-φ19	250		210			183	19		3	618	408
		16
150		10			267		8-φ19	285		240			209	19		3	653	425
		16
200		10			292		8-φ19	340		295			264	20		3	785	530
		16					12-φ23
250		10			330		12-φ23	400		350			319	22		3	911	621
		16					12-φ28			355
300		10			356		12-φ23	455		400			367	24.5		4	1020	703
		16					12-φ28			410
	350		10	381		16-φ23			520		460	429			26.5	4	1097	841
			16			16-φ28					470
	400		10	406		16-φ28			580		515	480			28	4	1199	922
			16			16-φ31					525
	450		10	432		20-φ29			640		565	550			30	4	1342	1022
			16			20-φ31					585
	500		10	457		20-φ29			715		620	609			31.5	4	1535	1177
			16			20-φ35					650
	600		10	508		20-φ32			840		725	682			36	5	1799	1379
