Product Name： 105Q
Product details：
105Q/108Q Non-rising Stem Groove Joint Ends Resilient Wedge Gate Valves
    • Bolted Bonnet·Non-Rising Stem·Resilient Wedge·Flanged ╳Ｇroove·Ｇroove╳Ｇroove
    • 250 PSI/300 PSI/17.2 Bar Non-Shock Cold Working Pressure
    • CONFORMS TO AWWA　Ｃ509.

    Coating-Electrostatically applied fuaion-bonded epoxy 0.2-0.5mm.inside and outside.Meets or
    exceeds AWWA C550.Maximum operating temperature 160℉/71℃.

    Freezing Weather Precaution-Subsequent to testing a piping system,valves should be in an open position to allow complete drainage.

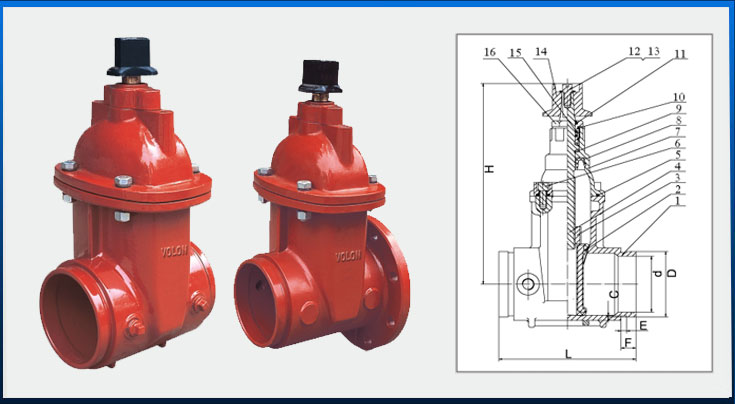

部件PART 规格说明SPECIFICATION
1 阀体Valve Body 铸铁ASTM A 536
Cast Iron ASTM A 536
2 弹性楔形闸板
Resilient Wedge		 球墨铸铁ASTM A 536/三元乙丙橡胶ASTM D 2000
Ductile Iron ASTM A 536/EPDM ASTM D 2000
3 楔形闸板螺母
Wedge Nut		 青铜ASTM B 584 UNS C83600
Bronze ASTM B 584 UNS C83600
4 阀杆Stem 不锈钢ASTM A 276 UNS C41000
Stainless Steel ASTM A 276 UNS C41000
5 阀盖垫圈
Bonnet Gasket		 三元乙丙橡胶ASTM D 2000
EPDM ASTM D 2000
6 阀盖螺丝 Bonnet Screw 镀锌合金钢 ASTM A 574M
Alloy Steel ASTM A 574M Zinc Plated
7 阀盖 Bonnet 铸铁ASTM A 126-B
Cast Iron ASTM A 126-B
8 阀杆主O形环
Stem Primary O-Ring		 三元乙丙橡胶 ASTM D 2000
EPDM ASTM D 2000
9 阀杆止推垫圈
Stem Thrust Washer		 不锈钢 ASTM A 276 UNS C41000
Stainless Steel ASTM A 276 UNS C41000
10 压盖密封O形环
Gland Seal O-Ring		 三元乙丙橡胶ASTM D 2000
EPDM ASTM D 2000
11 阀杆环防尘圈
Stem Ring Wiper		 三元乙丙橡胶ASTM D 2000
EPDM ASTM D 2000
12 执行机构螺母垫圈
Operating Nut Washer		 镀锌碳钢 Carbon Steel Zinc Plated
13 执行机构螺丝
Operating Nut Screw		 镀锌合金钢 ASTM A 574M
Alloy Steel ASTM A 574M Zinc Plated
14 方形执行机构螺母
Square Operating Nut		 铸铁ASTM A 126-B
Cast Iron ASTM A 126-B
14（A） 手轮（选配件）
Handwheel(Optional)		 球墨铸铁ASTM A 536
Ductile Iron ASTM A 536
15 阀杆次O形环
Stem Secondary O-Ring		 三元乙丙橡胶ASTM D 2000
EPDM ASTM D 2000
16 压套
Stem Seal Bushing		 黄铜 ASTM B 16 UNS C36000
Brass ASTM B 16 UNS C36000



尺寸
Dimension		 螺栓圆周
Bolt
Circle		 法兰
孔
Flange
Holes		 开启
圈数
Turns
To
Open
L C D E F G d D1 T
英
寸
ln		 毫
米
mm		 英
寸
ln		 毫
米
mm		 英
寸
ln		 毫
米
mm		 英
寸
ln		 毫
米
mm		 英
寸
ln		 毫
米
mm		 英
寸
ln		 毫
米
mm		 英
寸
ln		 毫
米
mm		 英
寸
ln		 毫
米
mm		 英
寸
ln		 毫
米
mm		 英
寸
ln		 毫
米
mm
8.0 203 0.08 2 3.50 89 0.35 9 0.98 25 10.00 254 3.0 73 7.5 191 0.75 19 6.00 152.5 4-Φ19 10.5
9.0 229 0.08 2 4.49 114 0.35 9 0.98 25 10.00 254 4.0 100 9.0 229 0.94 24 7.50 190.5 8-Φ19 13.75
10.5 267 0.08 2 6.61 168 0.35 9 0.98 25 12.40 315 6.0 150 11.0 279 1.00 25.4 9.50 241 8-Φ23 16
11.5 292 0.09 2.3 8.62 219 0.47 12 1.22 31 14.76 375 8.0 200 13.5 343 1.13 28.6 11.73 298.5 8-Φ23 17.5
13.0 330 0.10 2.55 10.74 272.9 0.52 13.2 1.25 31.7 16.38 416 10 250 15.95 406 1.19 30.2 14.25 362 12-Φ23 21.5
14.0 356 0.13 3.35 12.78 3245 0.52 13.2 1.25 31.7 17.52 445 12 300 19.02 483 1.25 31.8 17.01 432 12-Φ23 26
